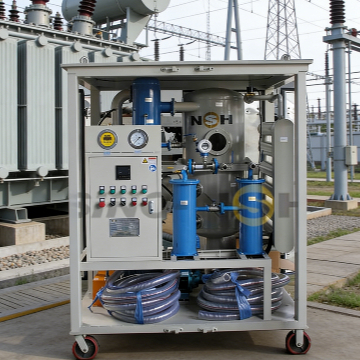

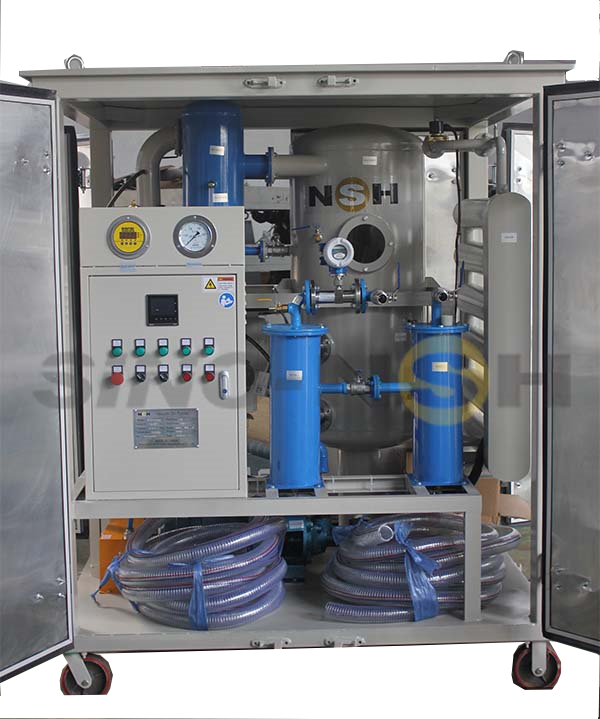

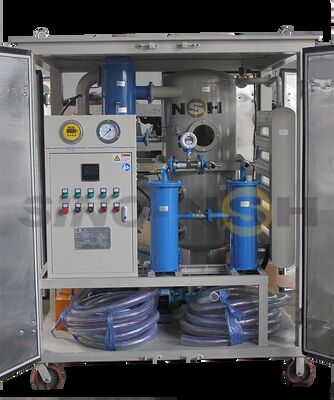

6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover

6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover
6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover 6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover 6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover 6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover 6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover 6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover
Informasi Dasar
Tempat asal: Cina
Nama merek: Sino-NSH
Sertifikasi: CE, ISO, CCC, SGS, CNAS, CQC
Nomor model: Vfd
Kuantitas min Order: 1 set
Harga: USD 5000-20000 dollar
Kemasan rincian: Kasing kayu yang kuat, cocok untuk transportasi angkutan laut jarak jauh dan perubahan iklim, ketaha
Waktu pengiriman: 15-25 hari kerja untuk OEM
Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram
Menyediakan kemampuan: 50 set per bulan
Harga terbaik Hubungi sekarang
Kekuatan (w): 103KW Berat: 900 kg
Layanan purna jual disediakan:: Insinyur tersedia untuk melayani mesin di luar negeri Voltase: 380v/50hz atau sesuai pilihan pengguna
Jaminan: 12 bulan Warna: Biru, Abu-abu, Hijau atau Dapat Disesuaikan
Suhu kerja: -10~80℃ Bahan: Baja
Metode Pemanasan: Listrik Kondisi: Baru
Dimensi (P*L*T): 1900*1400*1800 Aliran (L/H): 6000
Tekanan kerja: ≤ 0,3mpa Fungsi: Unit ini dapat meningkatkan sifat minyak isolasi pada trafo tenaga listrik dan peralatan listrik ber
Bahan mentah: Baja Karbon Jenis: penyaringan minyak trafo
Kapasitas: 6000 l/jam Nama: Mesin Dehidrasi Minyak Mesin Pemurni Minyak Transformator 6000 L/H
Menyorot: Pemurni Minyak Transformator 6000 L/H, Peralatan Pemurnian Minyak Isolasi

Product Overview

Sino-NSH 6000 liters/ hour Double-Stage Transformer Oil Purification Machine is a highly efficient and reliable oil cleaning equipment, specifically designed to meet the stringent requirements of transformer oil purification. This advanced machine is equipped with a robust steel cover, ensuring durability and safety during operation.

Application

Sino-NSH-VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.


Processed Oil Specification:

Water Content:≤5ppm

Gas Content:≤0.1%

Filtration Fineness:≤5(or 1-5 as needed)

 Operating conditions

The installation shall be designed to operate satisfactory at ambient temperatures ranging from -20 deg.C to 55 deg. C

Working Principle

The insulating oil is conveyed into the plant by means of pressure difference. Oil will firstly flow through a coarse filter, which can filter out large particles and mechanical impurities from insulating oil.

Oil is heated uniformly by electric heater with less specific heat transfer of1.7w/cm², thus the deterioration of the oil caused by overheating is avoided during this process.

The special vacuum tank create a large oil surface and a resulting thin film,where the oil flows track and static water evaporation area were expanded to the largest extent, so that the effect of dehydration and degassing is maximized effectively.The particular double-stage vacuum pump system and pressure-boost technical make vacuum degree in vacuum tank higher than that in common oil purifier plant. Specially-designed oil level controller in the vacuum tank assures a continuous oil flow-through in the plant, thus resulting in an optimized dehydration and degassing of the oil.

After degassing and dehydration under vacuum, the oil is conveyed by through the fine filter and out of the plant.


6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover 0

Item Unit VFD-30 VFD-50 VFD-100 VFD-150 VFD-200 VFD-300
Capacity liters/hour 1800 3000 6000 9000 12000 18000
Heating Power kW 24 30 60 90 120 150
Total Power kW 29 36 69 100 132 170
Inlet Diameter mm 25 32 40 40 50 65
Outlet Diameter mm 25 32 40 40 50 65
Size-Length mm 1350 1500 1900 2200 2400 2900
Size-Width mm 1100 1200 1400 1500 1600 1800
Size-Height mm 1700 1750 1800 1850 1900 2000
Weight kg 600 800 1150 1500 1700 2400

Function or Construction

1.Dehydration (Degas) System

2.Filtering System(particulate matter removal)

3.Oil heating System

4.Electrical Apparatus controlling System

5.Oil-level Controlling System

6.High quality components

The main component parts of NSH products such as vacuum pump,oil pump and electric apparatus are from high quality suppliers. It ensures NSH products high quality and reliability.
